Acoustic wall ties for supporting concrete, timber or metal studwork to provide stability along with acoustic isolation. Sylomer or rubber isolator versions available.
Acoustic stud wall braces provide an anti-vibration break between double partition wall leafs. Manufactured in two formats to suit different applications and installation techniques.
Key Specifications & Formats
EP600 Braces:Straight format that can be bent on-site to suit custom installation requirements.
EP650 Braces: Features a convenient pre-made angle for standard applications.
Maximum Load: Up to 25kg per bracket capacity.
Depth Accommodation: Tongues bend or cut to fit cavities up to approximately 160mm deep.
Installation Guidelines
Height Threshold: Recommended for stabilising double partition walls exceeding 3.5m in height.
Spacing Intervals: Must be installed at vertical intervals of 1.5m. For example, a 4.5m wall requires brackets at 1.5m and 3m heights.
Core Benefits
Vibration Isolation: Utilises Sylomer® material to prevent the transmission of sound energy and structural vibrations.
Fail-Safe Build: Rugged, overload-proof metal framework designed for floating suspensions.
Versatility: Suitable for timber or metal frames, fire-rated partitions, and light vertical duct or pipe isolation.

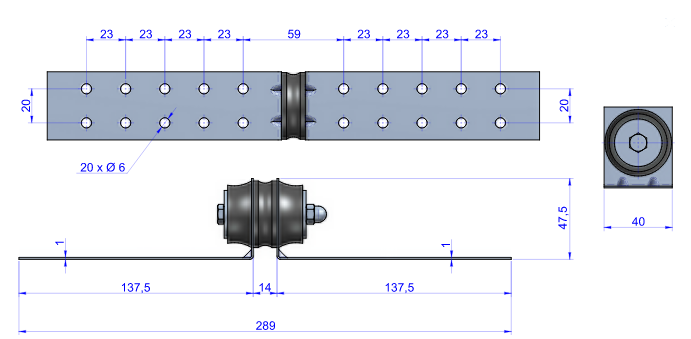

Installation example 1EP600+Sylomer Technical Drawing

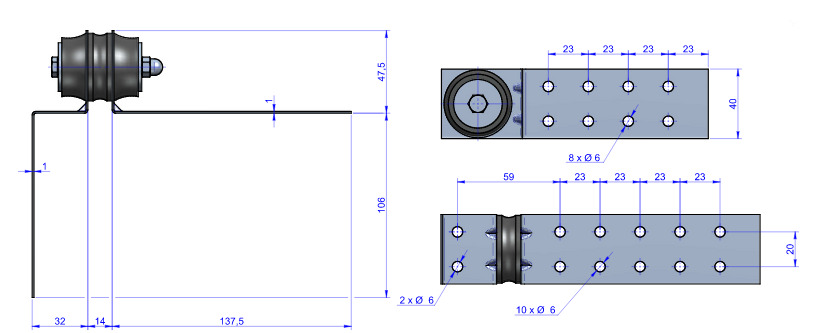

EP650+Sylomer Technical Drawing
A natural rubber grade version of this bracket is also available for more budget conscious applications.
