Industrial Soundproofing Blankets consists of a soundproof acoustic membrane core that is encapsulated in acoustic PET Felt, providing both sound reduction and sound absorbing properties.
Our Industrial Soundproofing Blankets consists of a soundproof acoustic membrane core that is encapsulated in acoustic PET Felt, providing both sound reduction and sound absorbing properties.
Soundproofing blankets are typically used in industrial applications to reduce excessive machinery noise.
The heavy weight of the product (5.8 kg/m²) guarantees excellent soundproofing results as well as acoustic absorption which reduces reverberation.

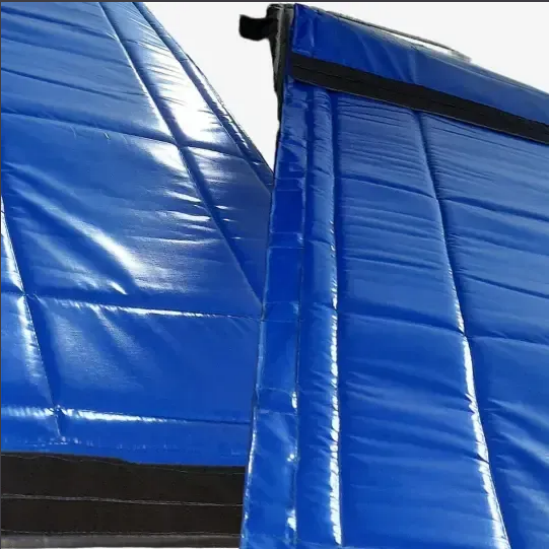

Supplied with an attractive acoustic fabric for internal applications, or with a waterproof vinyl fabric outer layer for applications that are exposed to the weather or dirty production processes. Our acoustic blankets offer maximum sound control and noise reduction using a combination of sound absorption and noise barrier material.
Acoustic blankets are extremely versatile as well as flexible. While they can be used as a permanent solution to reduce noise, soundproofing deadening curtains can also be moved where they are needed and stored out of the way when not in use.
| INT 20 | INT 26 | EX 22 | EQ 12 F | EQ 12 GF | |
| Standard Dims. | 1100 x 2100mm | 1100 x 2100mm | 1300 x 2100mm | 1300 x 2100mm | 1300 x 2100mm |
| Custom Dims. | 1100 x 3100mm | 1100 x 3100mm | 1300 x 3100mm | 1300 x 3100mm | 1300 x 3100mm |
| Thickness | 4mm | 20mm | 14mm | 25mm | 25mm |
| External Coating | PE Fabric | PE Fabric | Vinyl | PE Fabric | Glass Fabric |
| Insertion Loss | 20dB | 26dB | 22dB | 12dB | 12dB |
| Sound Absorption | 0.45 | 0.65 | 0.55 | 0.80 | 0.80 |
| Flammability | No | B1, s2, d0 | No | No | A2,s1,d0 |
| UV Resistance | No | No | Yes | No | Yes |
| Washable | Yes | No | Yes | No | Yes |
| Weight | 4kg/m² | 7.5kg/m² | 5.2kg/m² | 1.8kg/m² | 1.8kg/m² |
| Warranty | 1 Year | 1 Year | 1 Year | 1 Year | 1 Year |
| Colour Warranty | 1 Year | 1 Year | 1 Year | 1 Year | 1 Year |
Installation: Interior and exterior
Colours: 22 available
Thickness: 25mm
Weight: 5.8 kg/m²
Size: Custom – 1000mm wide and up to 3000mm tall
| Sound Reduction Index | ||||||||
| Freq, Hz | 63Hz | 125Hz | 250Hz | 500Hz | ||||
| R (dB) | ||||||||
Our acoustic blankets are available in four types with many optional accessories.
Standard sizes are 1100 x 2100mm and 1300 x 2100mm (type dependent) with custom sizes up to 3100mm long.
Magnet joining sections, velcro joining sections or just eyelets are available.

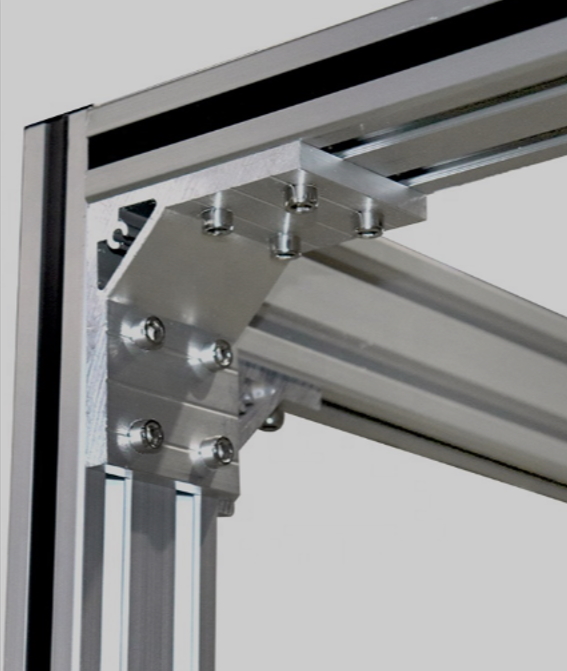

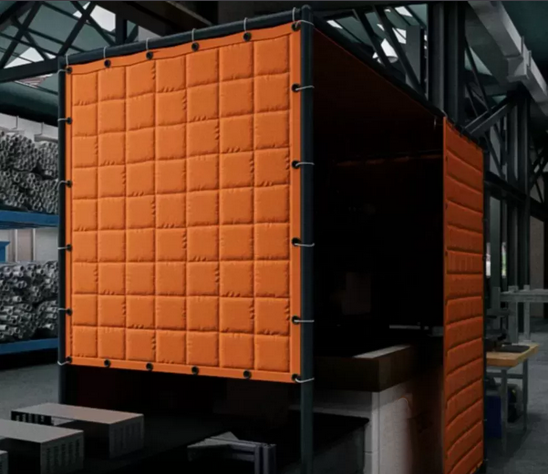

A modular metal framework is available which can be used to construct a moveable ‘booth’. This can also have rail runners and hooks so the blankets can slide.
Handles can be sewn into panels if required.
-Compressor, Genset or Chiller noise control
-Hydraulic pumps
-Outdoor sound blanket applications (building or civil works)-

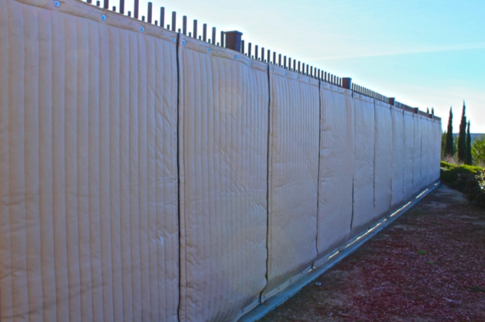

-External fence construction
-A wide range of industrial noise control projects
