Acoustic Nonius Hanger

Acoustic nonius hanger ideal for isolating a metal grid ceiling system from timber joists. Easy to install, effective and versatile.

View List

Description

Acoustic Nonius Hanger

Our Acoustic Nonius Hanger is a simple and effective way to acoustically decouple a metal frame ceiling system from a timber joist.

The Sylomer® microcellular polyurethane material provides superior isolation to rubber and/or cork materials, especially at lower frequencies.

Three versions are available depending on the load capacity required.

Type Max. Load Natural Freq.
Nonius15 15kg nom. 7Hz
Nonius30 30kg nom. 7Hz
Nonius50 50kg nom. 8Hz

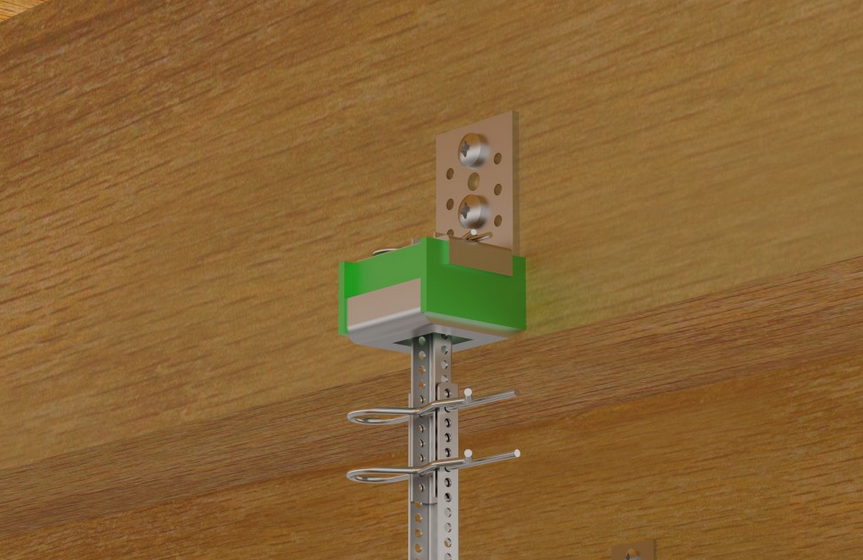

acoustic nonius hanger installation 1

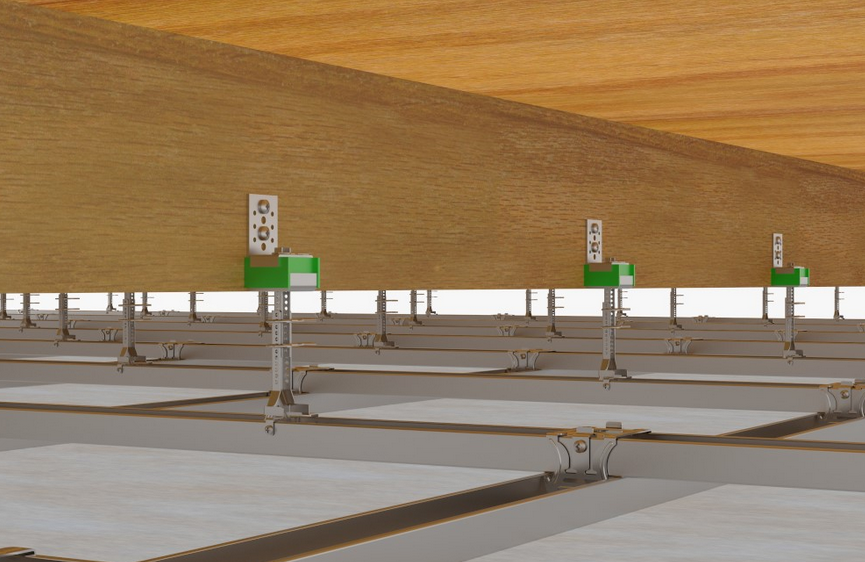

acoustic nonius hanger installation 2

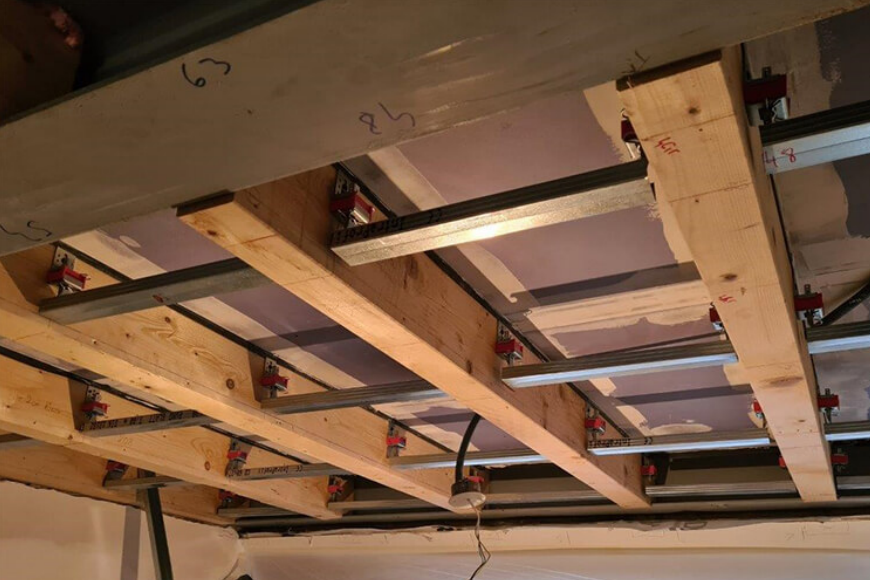

acoustic nonius hanger installation 3

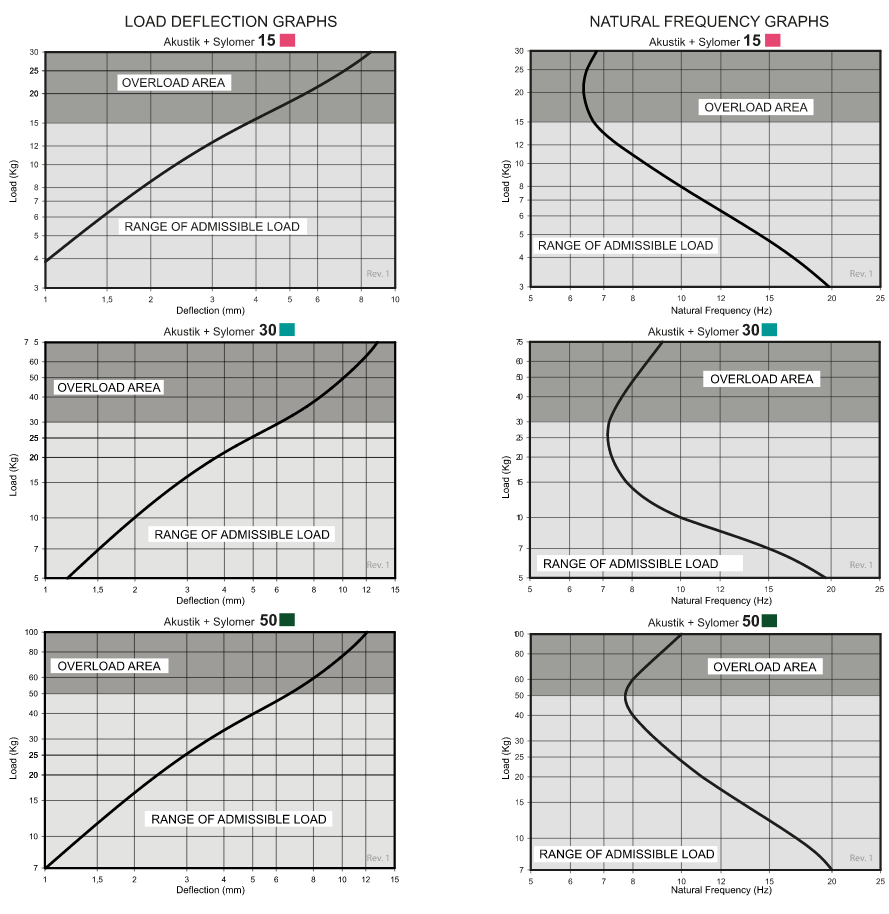

Load/Deflection Graphs

acoustic nonius hanger elastic properties graph

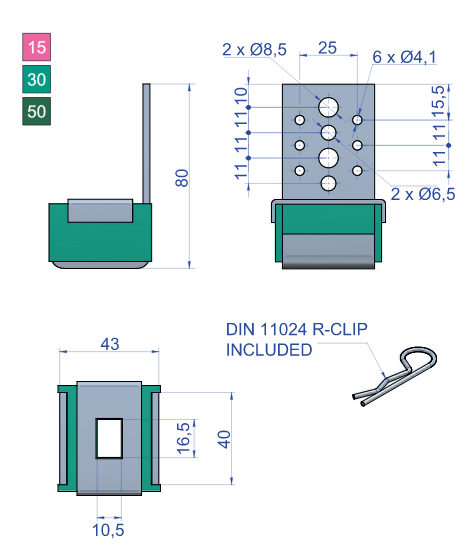

Technical Drawing

acoustic nonius hanger technical drawing
