A direct fix acoustic ceiling hanger designed for loads between 15kg and 75kg per mount.

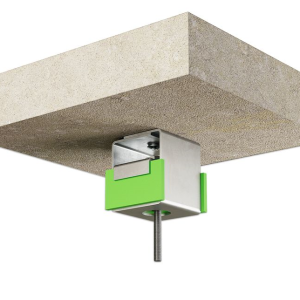

The Acoustik1 + Sylomer® ceiling hangers range consists of high-performance acoustic hangers engineered for the suspension of acoustic ceilings, vibrating pipelines, and suspended industrial machinery. Designed specifically for applications requiring high-efficiency and good low frequency performance. These hangers are ideal for direct integration with timber joists, concrete ceilings and suspended metal frame systems.
Unlike standard acoustic mounts that rely on rubber or cork combinations, these hangers utilise micro-cellular Sylomer® polyurethane. This advanced material delivers superior mechanical decoupling and vibration isolation values along with improved low frequency isolation. To ensure optimum deflection across varying weight requirements, the range is manufactured in two specialized Sylomer® density formulations.
Every Acoustik1 hanger configuration (Type A and Type B) is available in four maximum weight capacities. Please specify your required load rating and thread size when ordering.
The variety of metal body and fixing element allows for the installation to be highly adaptable for each type of project. Their rugged metal parts can withstand tensile stresses from 650Kg to 1,000Kg. They are supplied with an anti-corrosive treatment that can withstand the toughest environments.
| Maximum load capacity per hanger |
Available hardware thread options | Primary application type |
| 10kg | M6/M8 rod or welded nut | Low weight acoustic ceiling / small pipework |
| 30kg | M6/M8 rod or welded nut | Standard acoustic ceiling / medium pipework |
| 50kg | M6/M8 rod or welded nut | Heavy duty acoustic ceiling / machinery |
| 75kg | M6/M8 rod or welded nut | High load industrial suspension / machinery |

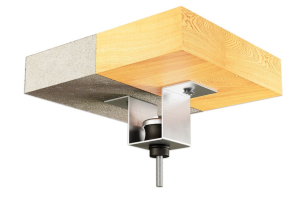

This range are almost identical to the Sylomer version above but utilise a lower cost rubber isolation material.
The metal bracket itself can withstand loads up to 650kg.

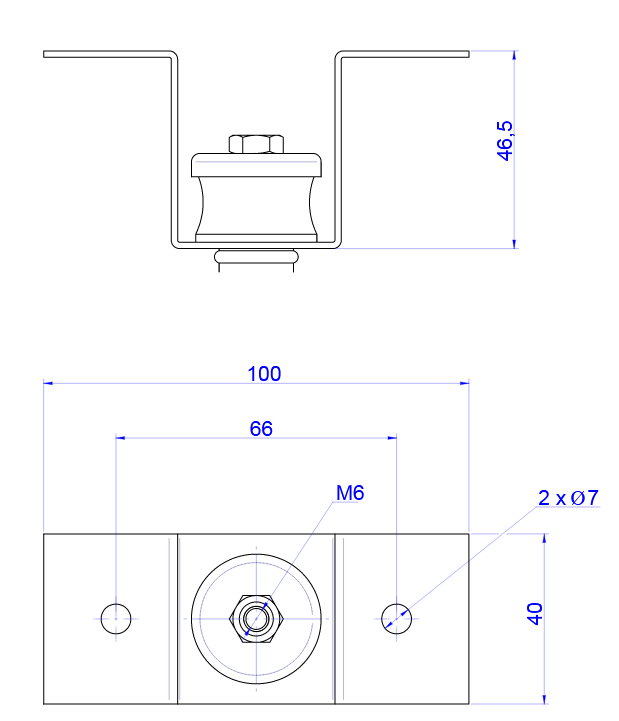

Available in two styles:
A-45 for loads between 8kg to 30kg per mount
B-60 for loads between 25kg to 60kg per mount
