Acousticgb-lateral A lateral direct fix acoustic ceiling hanger designed for loads between 15kg and 75kg per mount.

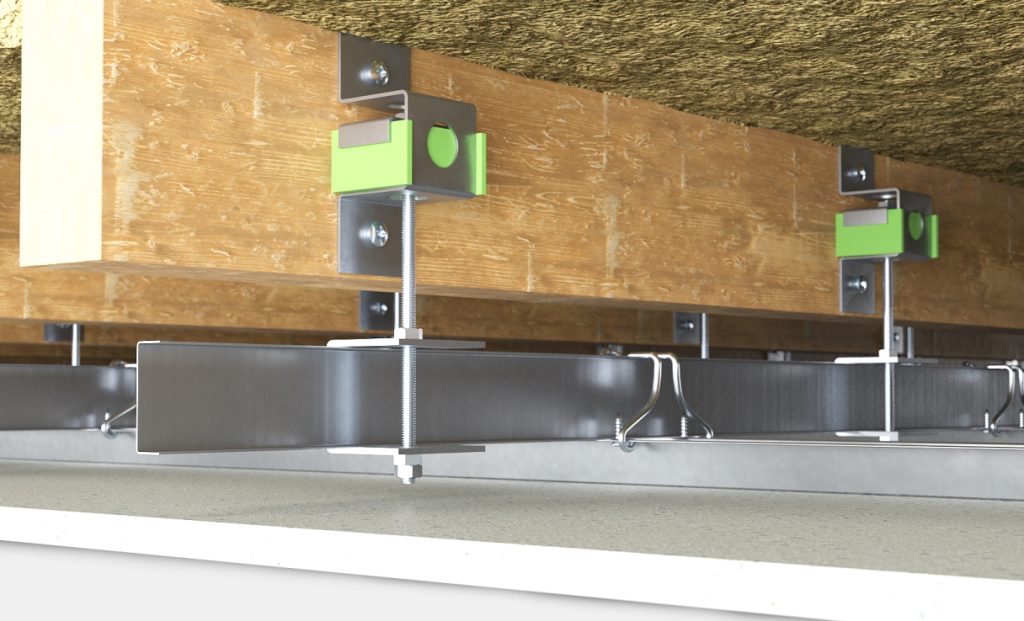

The AcoustikGB-lateral + Sylomer®range consists of high-performance acoustic hangers engineered for the suspension of acoustic ceilings, vibrating pipelines, and suspended industrial machinery. Designed specifically for applications requiring high-efficiency lateral vibration isolation, these hangers are ideal for direct integration with timber joists and suspended metal frame systems.
Unlike standard acoustic mounts that rely on rubber or cork combinations, these hangers utilise micro-cellular Sylomer® polyurethane. This advanced material delivers superior mechanical decoupling and vibration isolation values along with improved low frequency isolation. To ensure optimum deflection across varying weight requirements, the range is manufactured in two specialized Sylomer® density formulations.
Every AcoustikGB hanger configuration (Type A and Type B) is available in four maximum weight capacities. Please specify your required load rating and thread size when ordering.
| Maximum load capacity per hanger |
Available hardware thread options | Primary application type |
| 10kg | M6/M8 rod or welded nut | Low weight acoustic ceiling / small pipework |
| 30kg | M6/M8 rod or welded nut | Standard acoustic ceiling / medium pipework |
| 50kg | M6/M8 rod or welded nut | Heavy duty acoustic ceiling / machinery |
| 75kg | M6/M8 rod or welded nut | High load industrial suspension / machinery |
TYPE A
TYPE B

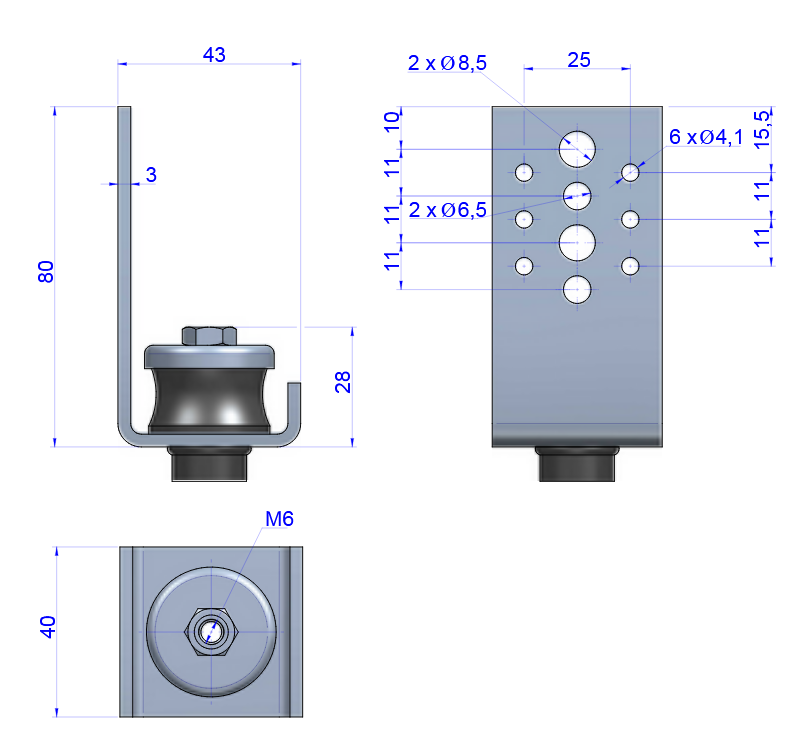

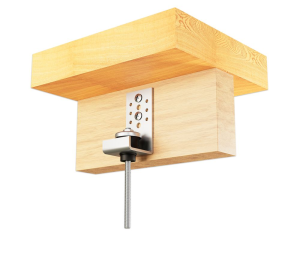

This range are almost identical to the Sylomer version above but utilises a lower cost rubber isolation material.
Available in two styles:
A-45 for loads between 8kg to 30kg per mount
B-60 for loads between 25kg to 60kg per mount
