EP400 Studwork Isolation Mounts

For effective acoustic decoupling of studwork and boarding from the structure. These mounts help acoustically space rigid plasterboard and framework away from the walls.

View List

Description

EP400 Studwork Isolation Mounts

EP400 Studwork isolation mounts are particularly suited for improving standard acoustic partitions.

Designed to provide stability via acoustic decoupling of the stud work back to the wall.

Wall loadings should be accommodated via floor isolation mounts. These wall ties are designed to provide vertical acoustic bracing only.

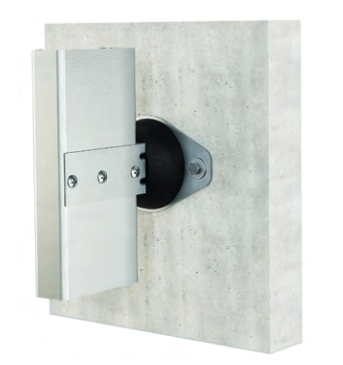

EP400 thumbnail 200

Installation

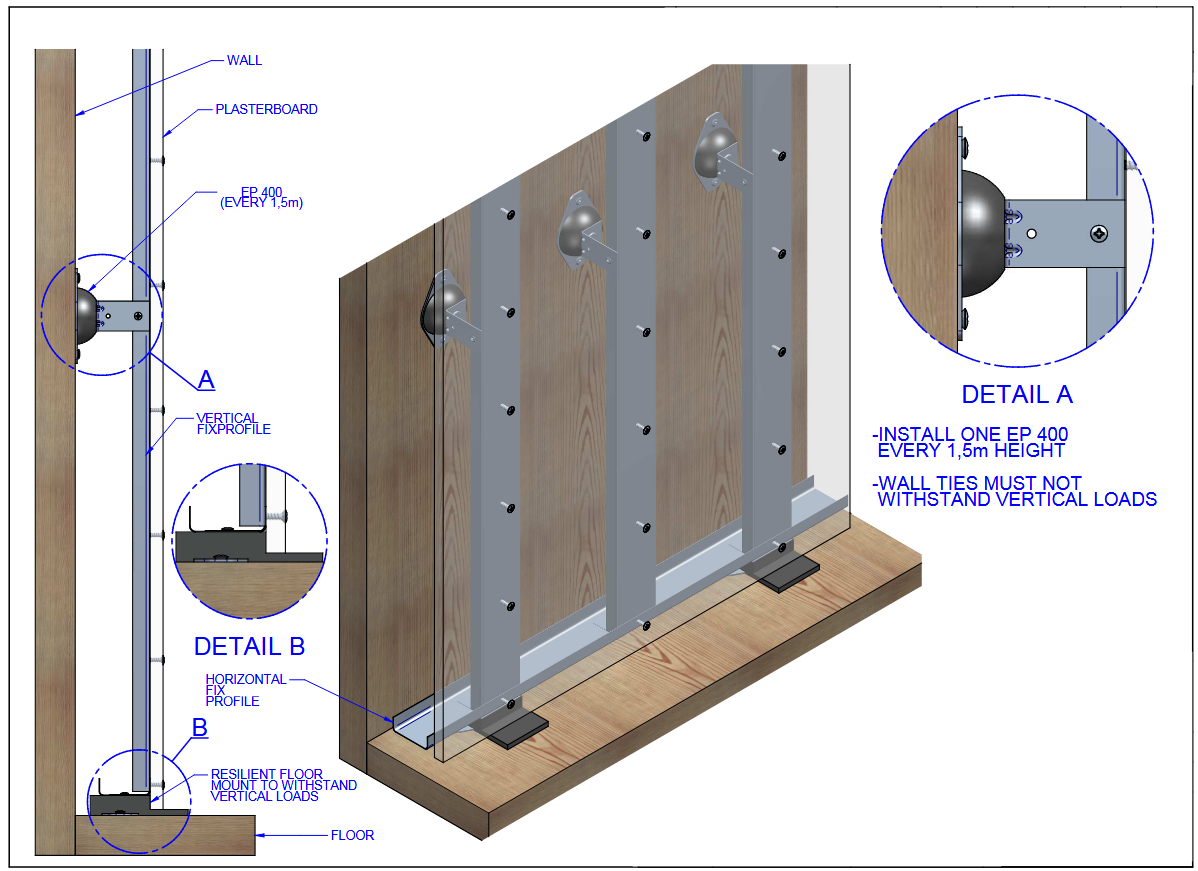

EP 400 rubber installation drawing

Technical Drawings

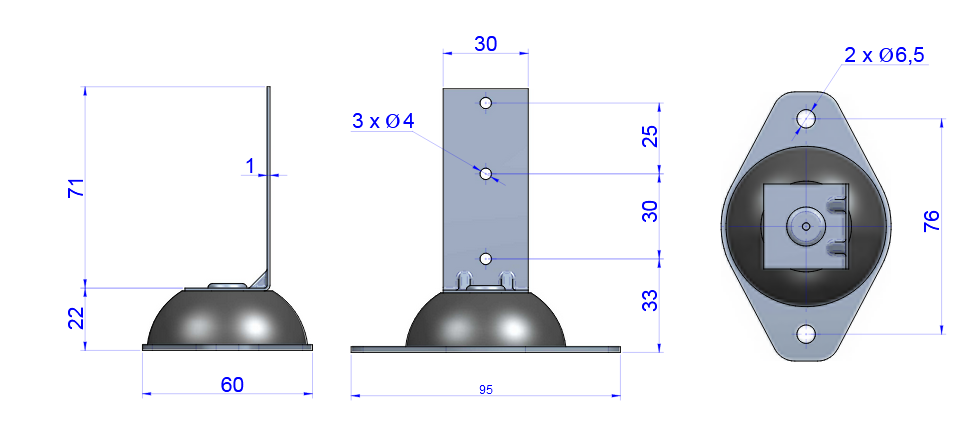

EP 400 rubber technical drawing
