Roland D20 Repair:

A Roland D20 Repair – This unit was in dire need of a clean, service as well as the repair of a few issues including replacement memory battery and dead keys.

There were keys not triggering and the dreaded red glue syndrome was allegedly already already done. However, upon inspection it was clear that two keys were still leaking it out causing further damage.

The unit had also been in the vicinity of black spray paint so had a light dusting everywhere including over the LCD display, keybed and chassis. The customer also asked for the stickers to be removed.

The internal rust was treated, red glue issue removed, faulty key contacts repaired, new battery installed and all the spray paint residue was removed.

She may not be as good as a D50 but is now certainly more presentable and with new PSU capacitors and further works should be good for many years to come.

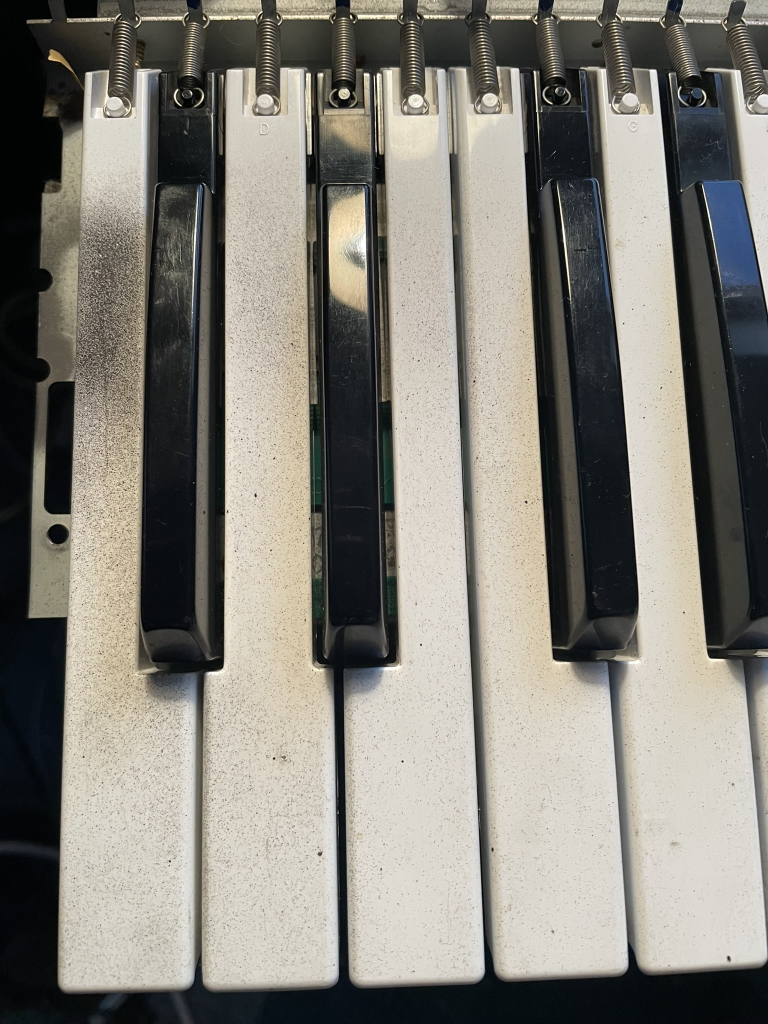

D20 black spray paint over the keys

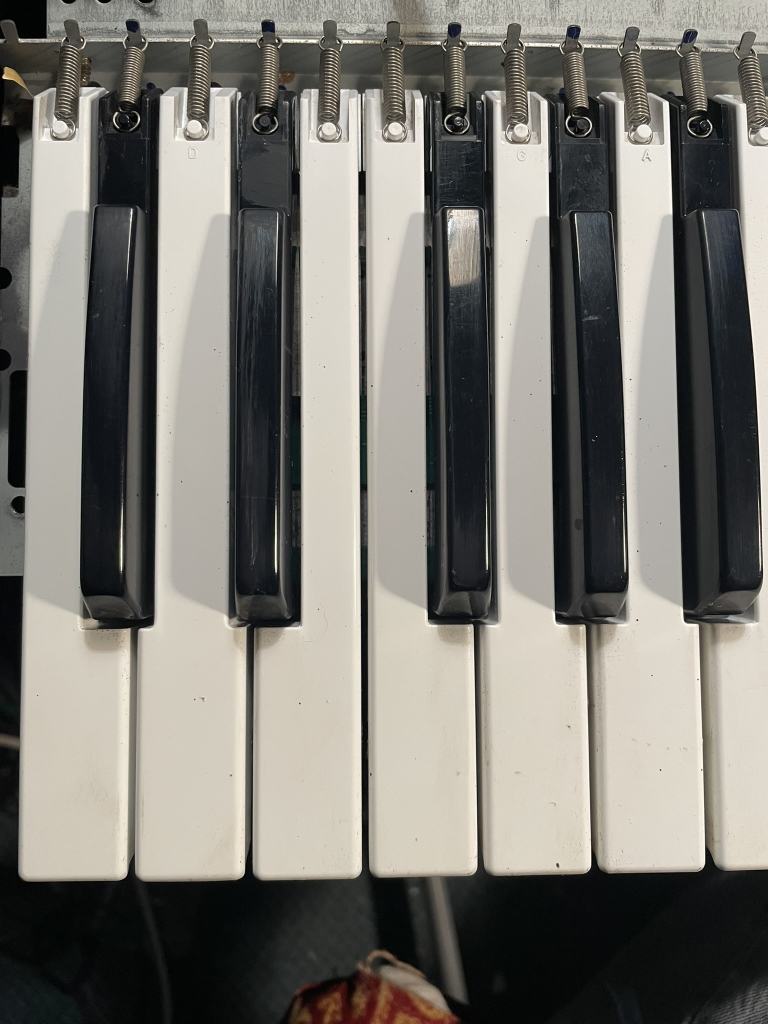

D20 black spray paint removed

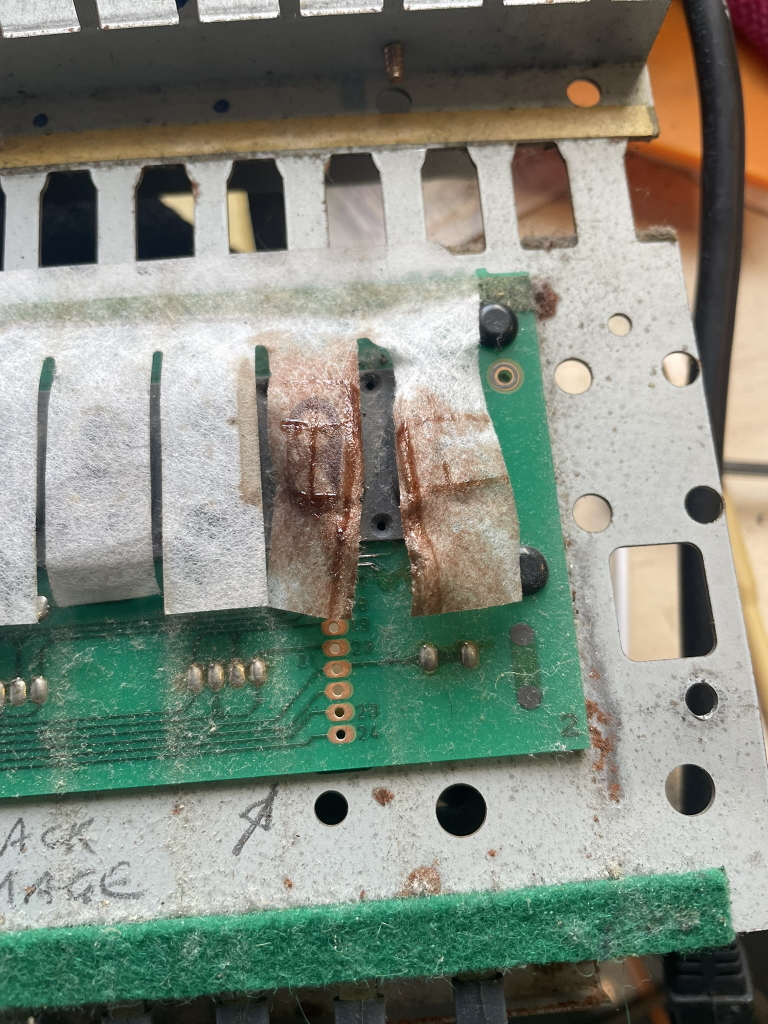

D20 red glue problem2

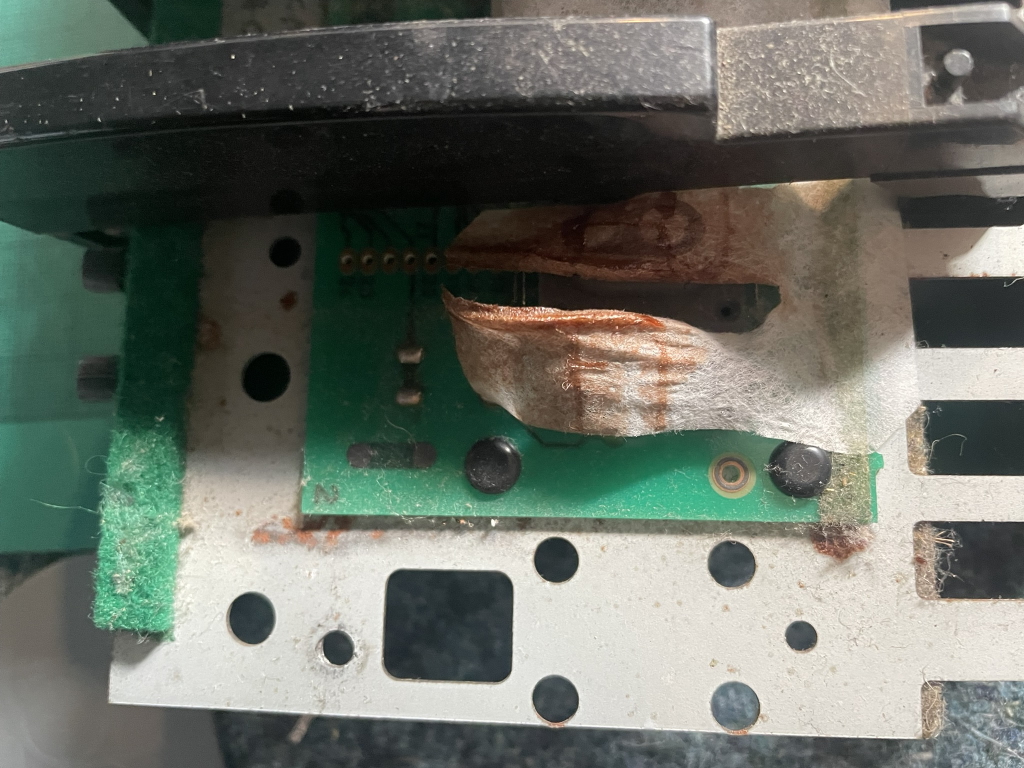

D20 red glue problem1

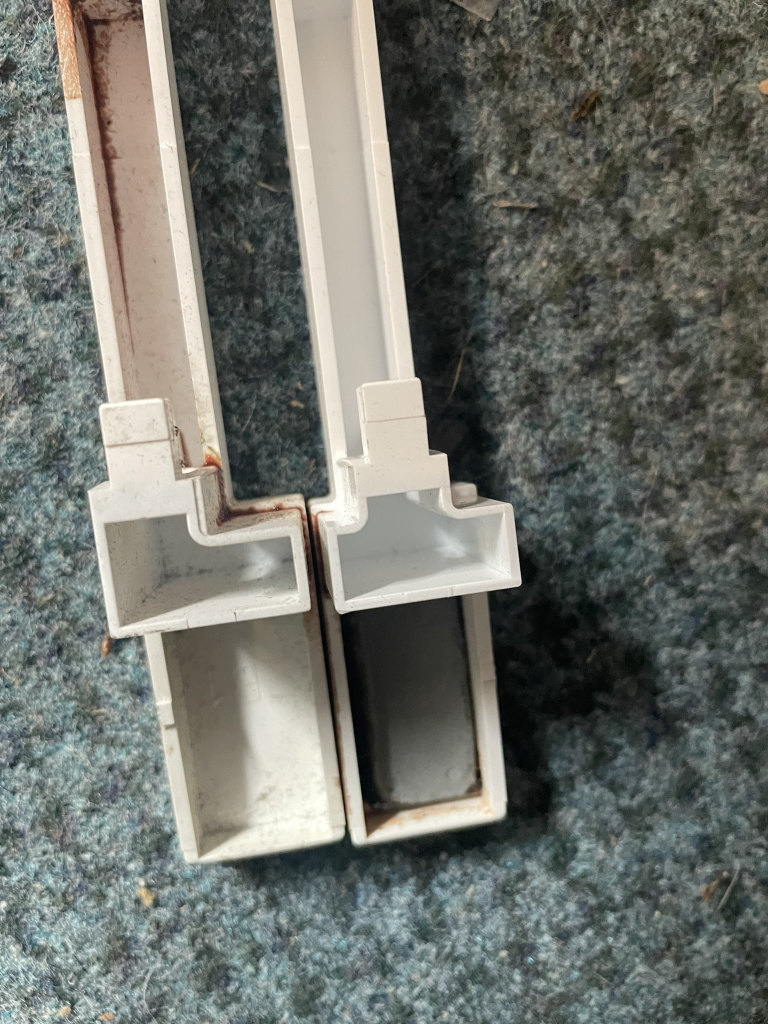

D20 missing key weight

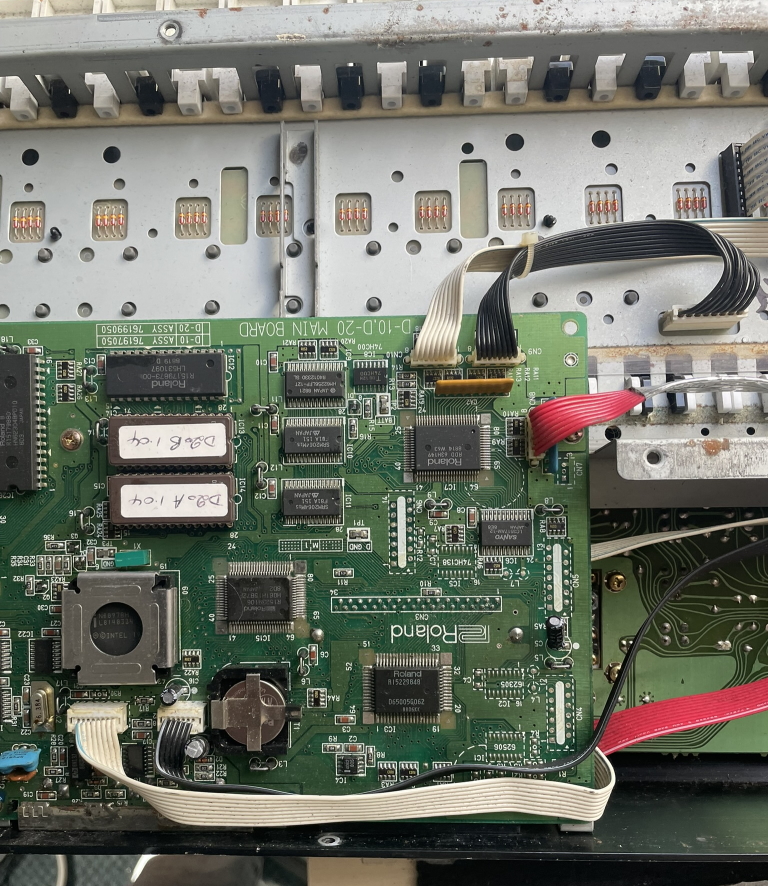

D20 memory battery position

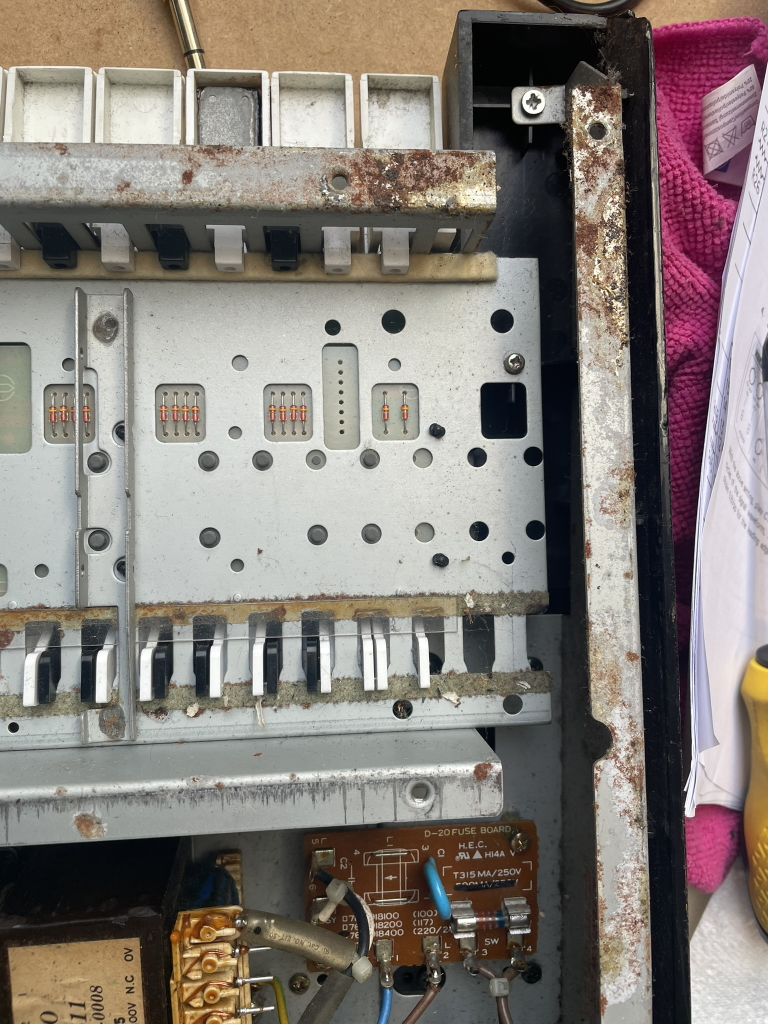

D20 internal rust issue

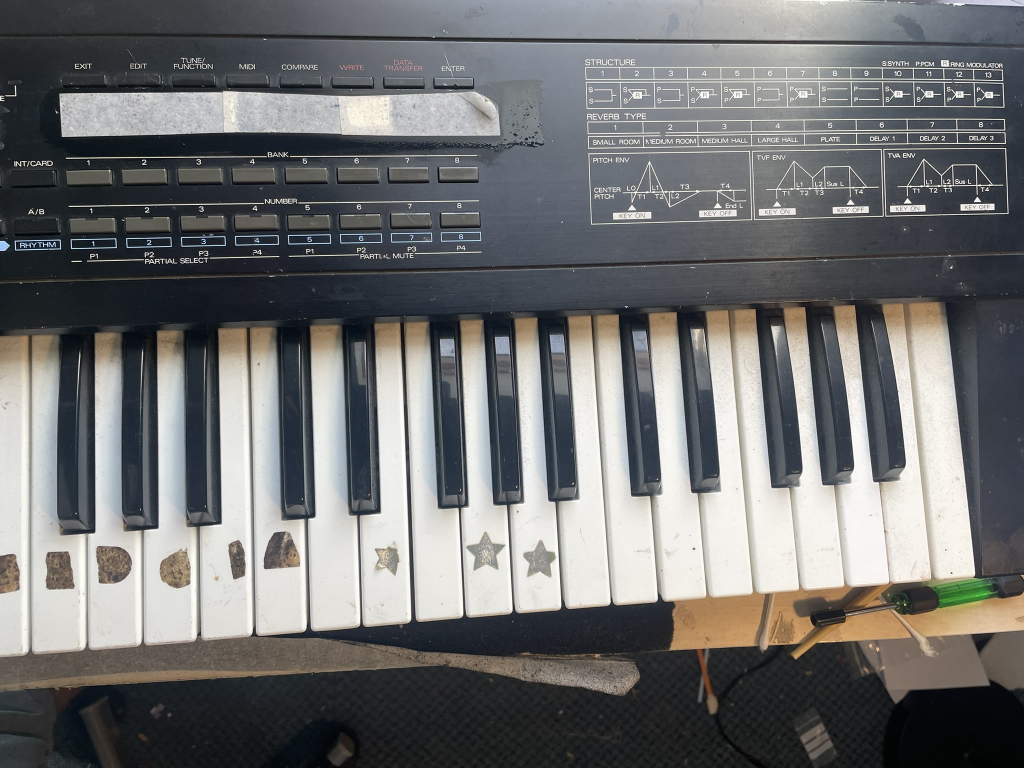

D20 initial stickers

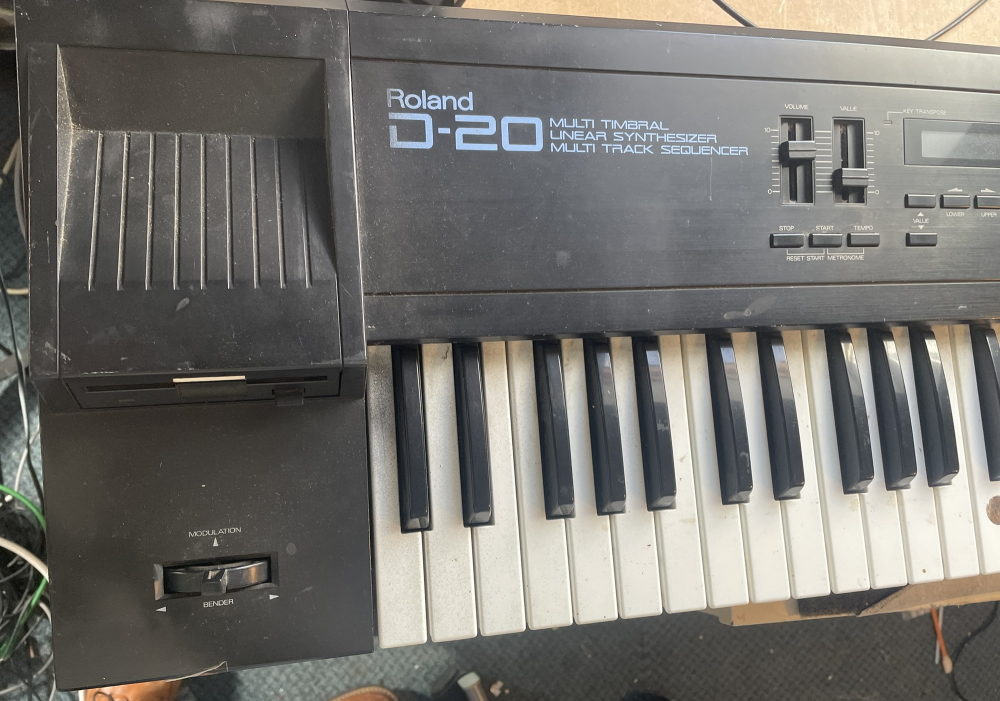

D20 initial dirt

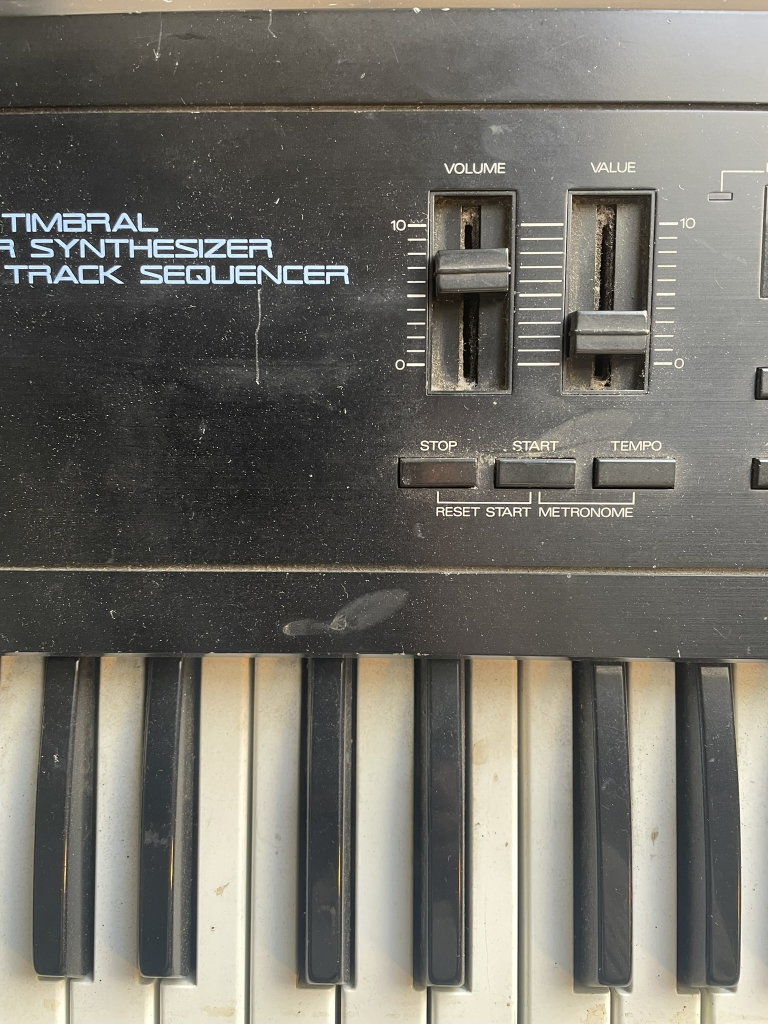

D20 dirty faders

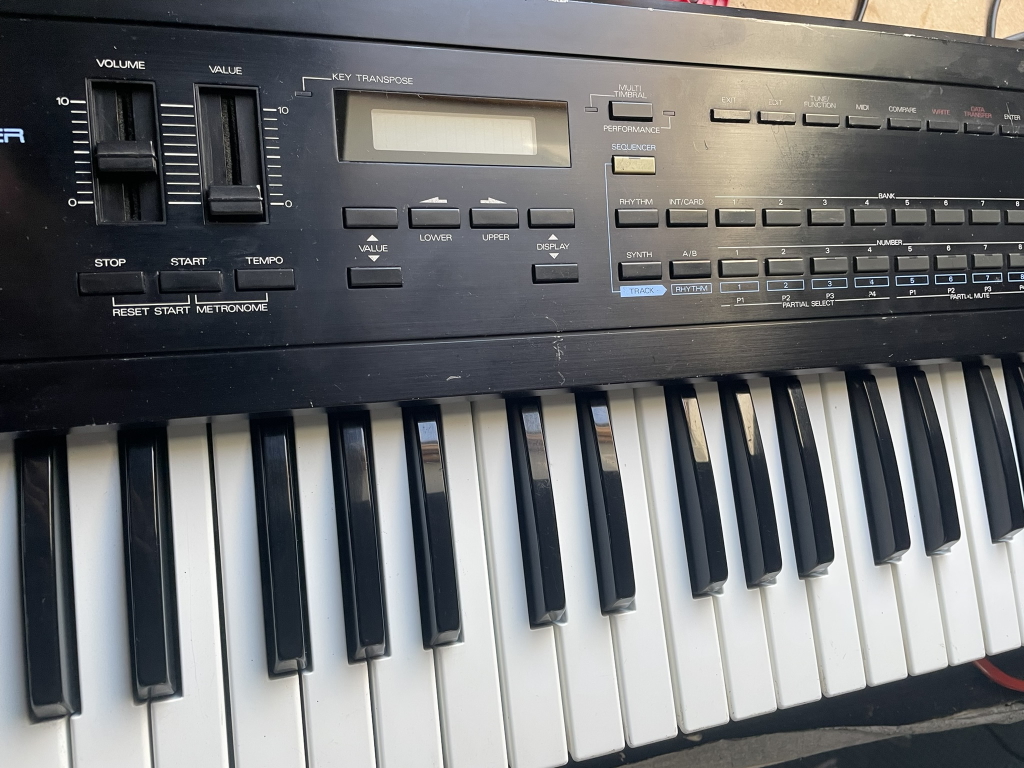

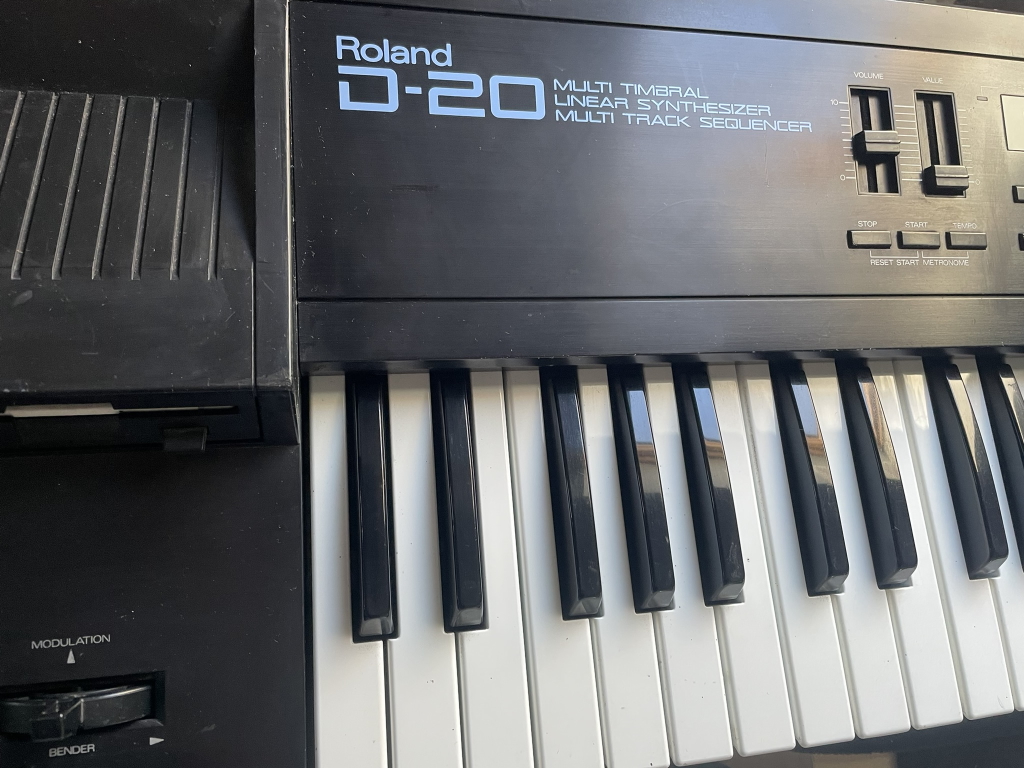

roland d20 finished 1
