Acoustic Studio Window Frame, Rw 55dB double metal with one side angled to reduce internal reflections.
Ideal for:
Acoustic Studio Window Frame rated to provide circa. Rw 55dB with a minimum of 200mm separation gap.
If the gap is less then acoustic performance will be lower. If the gap is greater then the acoustic performance will generally be higher.
Both are related to the acoustic sound insulation value of the wall in which it is fitted into and also the area of the window with respect to the area of the wall.
Laminated glass is required but not supplied. The frames are designed to accept 5+5mm and 4+4mm. They will not accept any other glass thickness.
One side is angled to reduce internal room reflections.
| Dimensions (width x height mm) | |||
| Model | Glass light Dim. C x D | Overall glass size | Exterior Dim. A x B |
| VP 1010 | 884 x 884 | 913 x 913mm | 1000 x 1000 |
| VP 1510 | 1384 x 884 | 1413 x 913mm | 1500 x 1000 |
| VP 2010 | 1884 x 884 | 1913 x 913mm | 2000 x 1000 |
| VP 2510 | 2384 x 884 | 2413 x 913mm | 2500 x 1000 |
| VP 3010 | 2884 x 884 | 2913 x 913mm | 3000 x 1000 |
Please Note: We can also supply window frames in timber which have been tested onsite to Dw 75 – 79dB. It should be considered, that the performance of an acoustic window is directly related to the acoustic performance of the partition into which it is installed. It is not possible to achieve this level of sound isolation if the partition is rated to a lower Dw

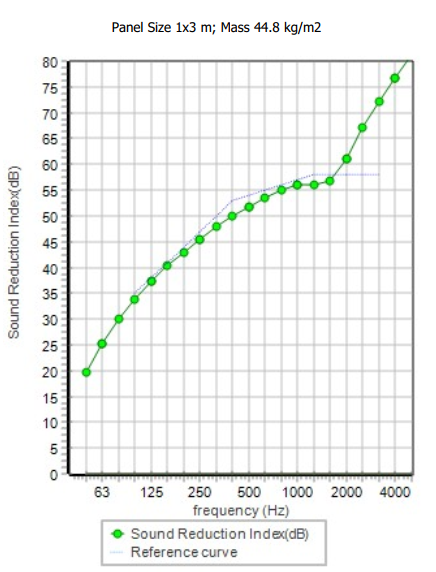

The graph below is an indicative example of one-third-octave data. This will change depending onthe size of the window, glass type used, size of partition it is installed in and other factors. It is prudent to over design a studio window for a higher rating than actually required.
